Title:Mitigation of Corrosion in Continuously Reinforced Concrete Pavement
Authors:Allen Jones, Nadim Wehbe, Stephanie Klay, and Shaun Maassen
University:South Dakota State University
Publication Date:May 2021
Report #:MPC-21-434
Project #:MPC-316
TRID #:01776653
Keywords:before and after studies, continuously reinforced concrete pavements, corrosion, corrosion protection, cracking, electron microscopy, field tests, laboratory tests



Abstract

An evaluation of CRCP was conducted in order to determine the extent of possible corrosion of CRCP on selected interstates in South Dakota. General observations showed there were sections of severe and localized reinforcement corrosion at some crack locations. Crack mapping, chloride tests profiles, scanning electron microscopy (SEM) analyses, and half-cell potential measurements were conducted in the field. Half-cell potential measurements and crack density were investigated for correlations to corrosion. Results showed there was a significant positive correlation between elevated half-cell potential measurements and crack density.

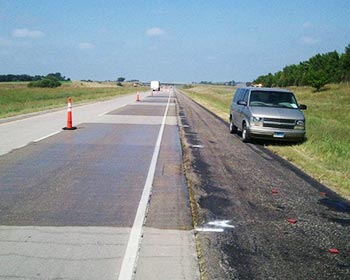

Topically applied corrosion mitigation products were applied at test section CRCPs. Field testing consisted of evaluating the change in half-cell potential of the reinforcement before and after the corrosion mitigation products were applied to sections of an interstate highway. Laboratory testing consisted of casting reinforced concrete specimens that used mix designs similar to the pavements evaluated in the field. The half-cell potentials for each specimen were monitored during the duration of the research project. Four of the laboratory specimens were also tested using chloride ion analysis and SEM techniques.

How to Cite

Jones, Allen, Nadim Wehbe, Stephanie Klay, and Shaun Maassen. Mitigation of Corrosion in Continuously Reinforced Concrete Pavement, MPC-21-434. North Dakota State University - Upper Great Plains Transportation Institute, Fargo: Mountain-Plains Consortium, 2021.
